Banks, computer room, data center, control room, workshop and places where require anti-static environment, also require good decoration effect
Characteristics
- Patent anti static ceramic
- Better resistance against abrasion, longer service life
- Excellent anti-static performance
- Higher fire-proof grade as much as 1000℃

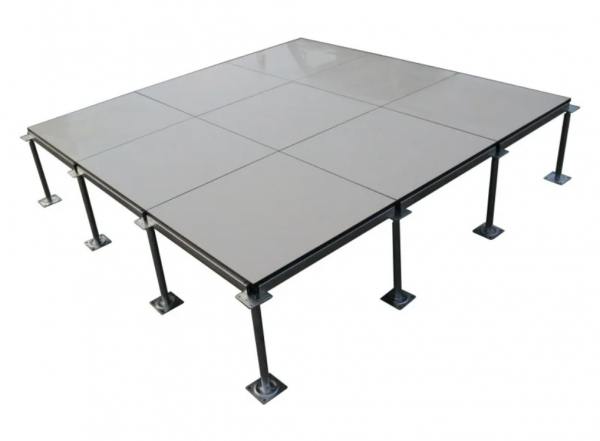

Understructure
The finished floor height(FFH) of the raised access floor, measured from the sub-floor to the top surface of the installed flooring system, shall be as shown in the contract drawings.
Standard type pedestals and stringers
Heavy-duty type pedestals and stringers
Technical parameters
The raised floor will be with a safety factor of three times the concentrated (design) load, and is capable of meeting static and dynamic loads per CISCA Platform (Raised Access) Floors Performance Specification.
| Type | Size | Uniform Load | Concentrated Load | Rolling Load | Impact Load | Ultimate Load | ||
| 0.100”/2.5mm Deflection | 10 Times | 10K Times | ||||||
| FS800 | 602*602*40mm | 14.22KN/㎡ | 3.56KN | 363KG | 2.94KN | 2.45KN | 100LB/45KG | 11.25KN |
| FS1000 | 602*602*40mm | 17.78KN/㎡ | 4.45KN | 454kG | 3.56KN | 2.67KN | 150LB/68KG | 14.50KN |
| FS1250 | 602*602*40mm | 22.23KN/㎡ | 5.56KN | 567KG | 4.45KN | 3.56KN | 150LB/68KG | 18.36KN |
| FS1500 | 602*602*40mm | 26.67KN/㎡ | 6.67KN | 680KG | 5.56KN | 4.45KN | 175LB/68KG | 22.17KN |
Why anti static flooring?
Static electricity not only causes random failures, malfunctions or calculation errors in the operation of the equipment room, but also causes breakdown and destruction of certain components, such as CMOS, MOS circuits, and two-stage circuits. In addition, static electricity is applied to external devices of the computer, so anti-static flooring can be very necessary for data center, serve room, computer rooms, etc.
Data center, serve rooms need to adapt different layouts with different users and lessees, traditional facilities always become obsolete due to wiring and wiring distribution problems created by organisational changes and advances in technology, so building designers and facility managers need to face the challenges of constantly changing space needs while keeping life-cycle costs down. In data centers, computer rooms and all places with large numbers of electronic devices, owners need to find a way to eliminate the harmful effect to all their devices, so their service life can be extended, at the same time, huge and complicated wiring is a big headache.
Anti static flooring systems can realize fast and easy installation, quick wire and cable changes, enhancing the ability to reconfigure the offices without disrupting power, voice and data services, as well as the air distribution systems. With anti-static materials on top, raised floor systems can effectly conduct static, distribute conditioned air.
